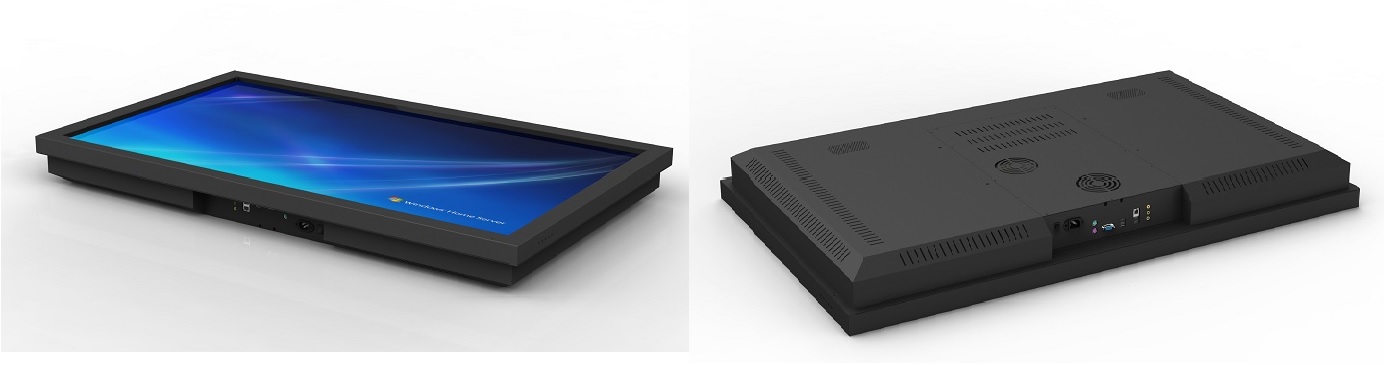

Category：Touch Product >> Multi-touch All In One PC   Name：32" Touch AIO(D525)
Introduction：
Panel Specification Panel Size 32 Wide LCD
LCD Ratio 16 : 9
Active Area 697.68(H) x 392.25(V) mm
Pixel Pitch  0.17025x 0.51075 mm
Resolution (Max.) 1366 x 768 (R.G.B)
Brightness 380 cd/m2
Contrast Ratio 1500:1
Response Time 8 ms (Type On/off)
Color Support 16.7M
View Angle (H/V) 178 / 178
 Back-light LED
BACKLIGHT LIFE   60000hrs
Speakers 3W+3W
PC Config. M/B Chipset Intel NM10
CPU Intel ATOM D525 1.8G
DDR 2 GB DDRⅢ
HDD 320GB (SATA)
I/O port DC JACKET、PS2*2、COM、VGA、USB2.0*4、RJ45、AUDIO 、Mic in
WIFI Optional
System  Support Microsoft Windows 7、XP
Touch Panel Type Infrared multi-touch
 Interface USB
OS Support Windows 7
Safety / EMC Standard   RoHS
Power Power Rating AC 100-240V; 50/60 Hz
Max Power Consumption ＜130W
Stand By Power Consumption ＜3W
Accessories Stand Power Cord
Optional Wall Mount
Packing Box Standard Shipping Box
Operation Temp/Humidity 0-50℃，20-90﹪RH
Storage Temp/ Humidity -20-60℃  10％-90％RH
