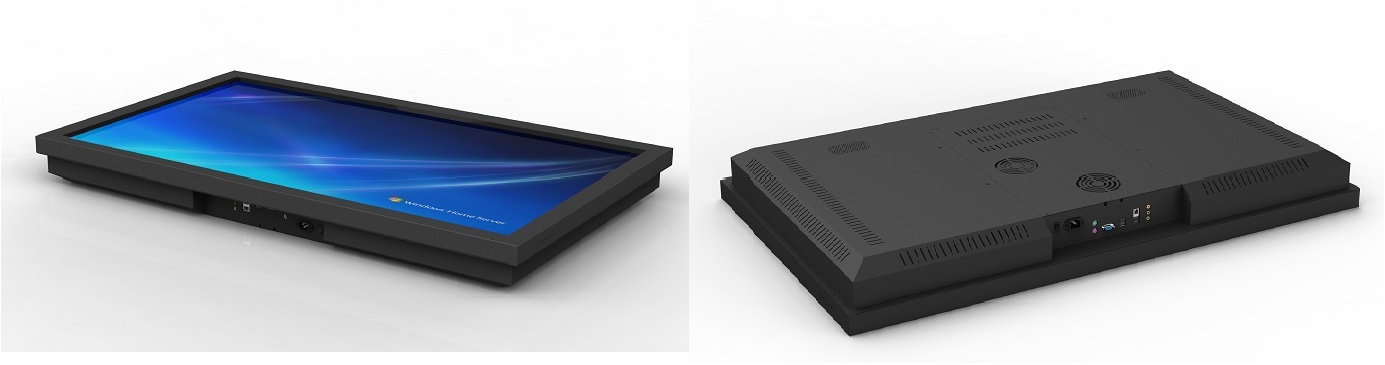

Category：Touch Product >> Multi-touch All In One PC   Name：42" Touch AIO(i3)
Introduction：
Panel Specification Panel Size 42 Wide LCD
LCD Ratio 16 : 9
Active Area 930.24(H) × 523.26 (V) mm
Pixel Pitch  0.4845(H) ×0.4845(V) mm
Resolution (Max.) 1920x1080 (R.G.B)
Brightness 360 cd/m2
Contrast Ratio 1400:1
Response Time 8 ms (Type On/off)
Color Support 16.7M
View Angle (H/V) 178 / 178
 Back-light LED
BACKLIGHT LIFE   60000hrs
Speakers 10W+10W
PC Config. M/B Chipset Intel  H61
CPU Intel  Core i3-3220 3.3GHz
DDR 2 GB DDRⅢ
HDD 320GB (SATA)
I/O port USB*4,RJ45*1,VGA、AUDIO 、Mic in
WIFI Optional
System  Support Microsoft Windows 7、XP
Touch Panel Type Infrared multi-touch (2 point ）
 Interface USB
OS Support Windows 7
Safety / EMC Standard   RoHS
Power Power Rating AC 100-240V; 50/60 Hz
Max Power Consumption ＜180W
Stand By Power Consumption ＜3W
Accessories Stand Power Cord
Packing Box Standard Shipping Box
Operation Temp/Humidity 0-50℃，20-90﹪RH
Storage Temp/ Humidity -20-60℃  10％-90％RH
