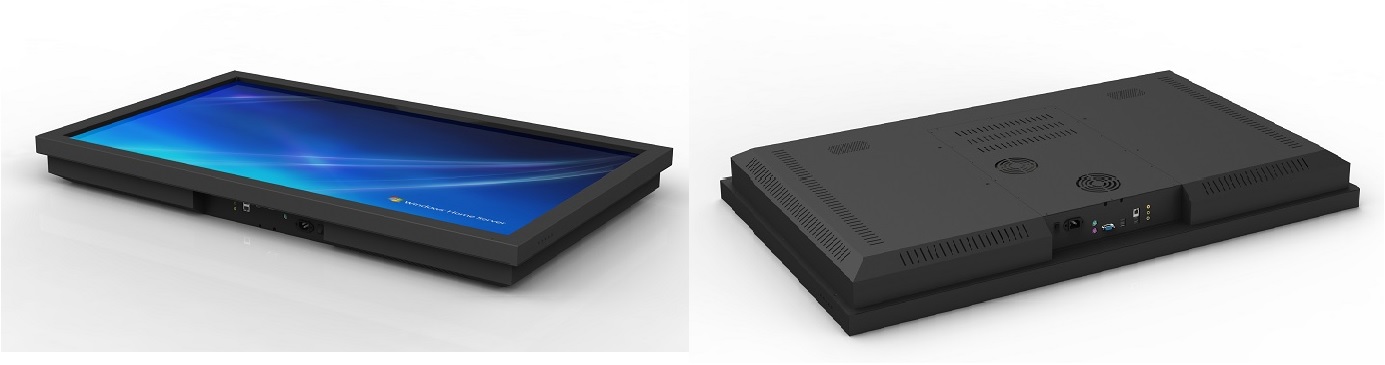

Category：Touch Product >> Multi-touch All In One PC   Name：55" Touch AIO(i3)
Introduction：
Panel Specification Panel Size 55 Wide LCD
LCD Ratio 16 : 9
Active Area 1209.6 (H) x 680.4 (V) mm
Pixel Pitch  0.630x 0.630 mm
Resolution (Max.) 1920 x 1080 (R.G.B)
Brightness 350 cd/m2
Contrast Ratio 6000:1
Response Time 6 ms (Type On/off)
Color Support 16.7M
View Angle (H/V) 178 / 178
 Back-light LED
BACKLIGHT LIFE   60000hrs
Speakers 3W+3W
PC Config. M/B Chipset Intel  H61
CPU Intel  Core i3-2120 3.3GHz
DDR 2 GB DDRⅢ
HDD 320GB (SATA)
I/O port USB*4,RJ45*1,VGA、HDMI、
AUDIO 、Mic in
WIFI Optional
System  Support Microsoft Windows 7、XP
Touch Panel Type Infrared multi-touch ( 2 point ）
 Interface USB
OS Support Windows 7
Safety / EMC Standard   RoHS
Power Power Rating AC 100-240V; 50/60 Hz
Max Power Consumption ＜220W
Stand By Power Consumption ＜3W
Accessories Stand Power Cord
Optional Wall Mount
Packing Box Standard Shipping Box
Operation Temp/Humidity 0-50℃，20-90﹪RH
Storage Temp/ Humidity -20-60℃  10％-90％RH
